Qihang QH-YM500W(14) 14 inch one-wheel motor Suppliers
Home / Product / Motor Wheel / Qihang QH-YM500W(14) 14 inch one-wheel motor

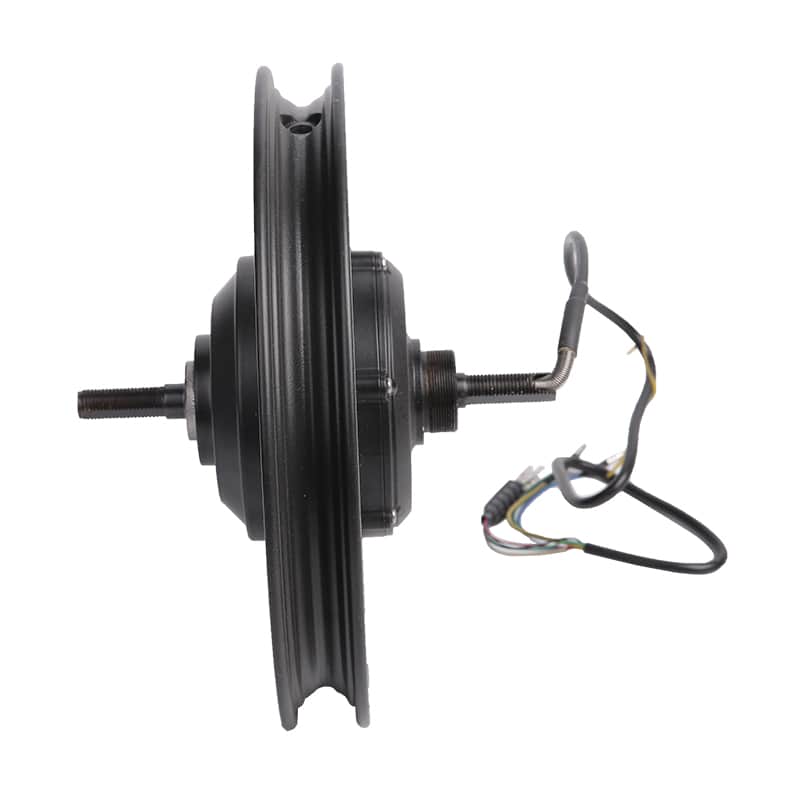

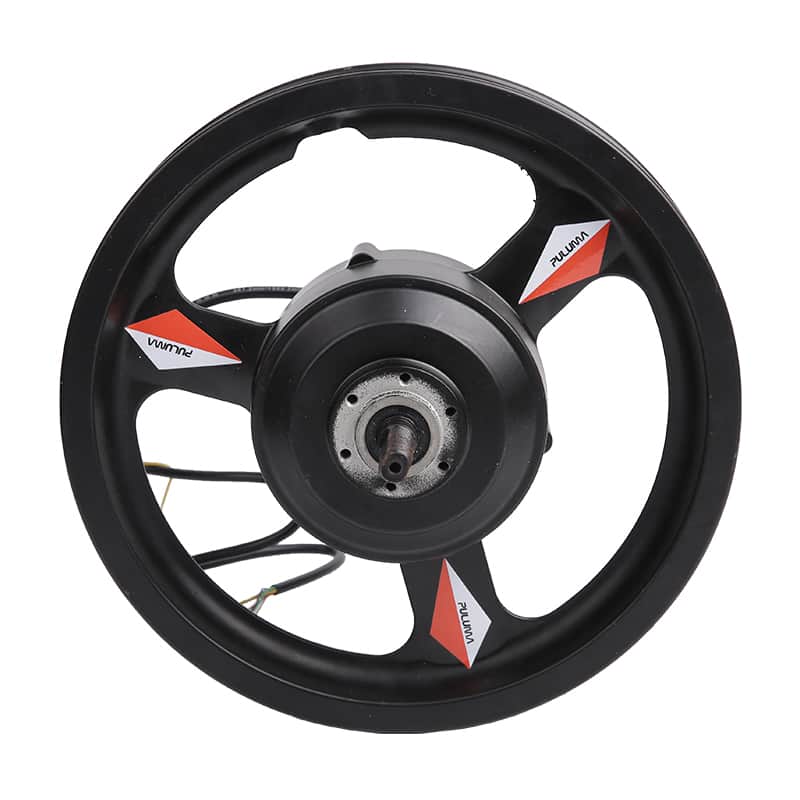

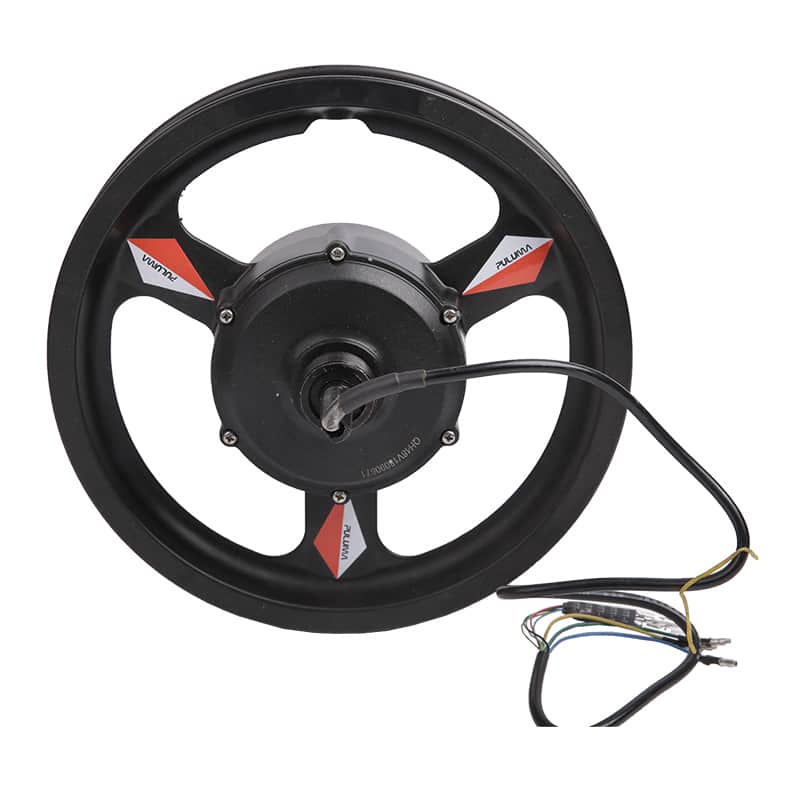

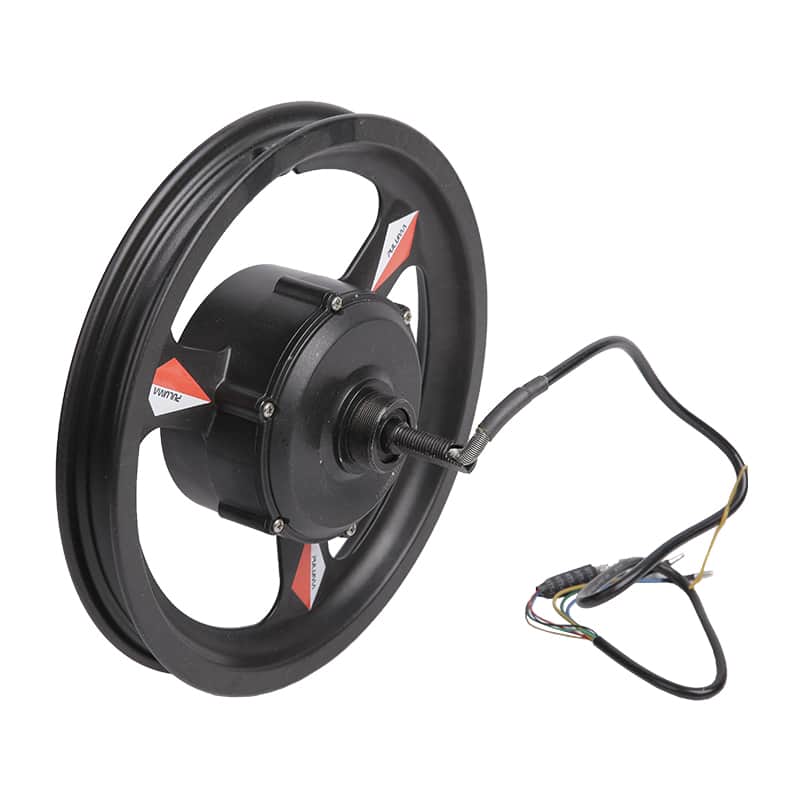

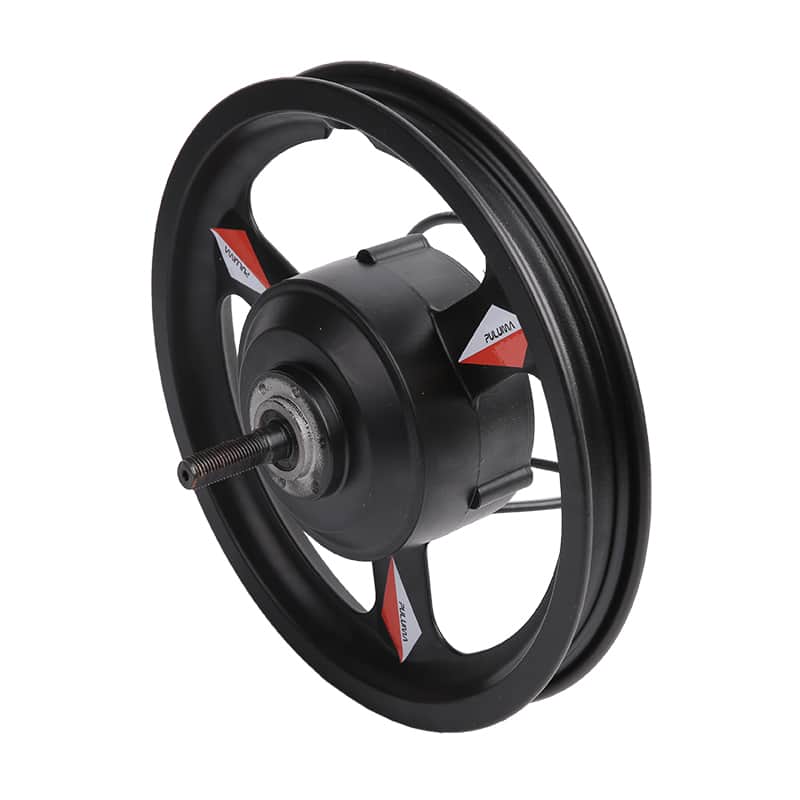

Qihang QH-YM500W(14) 14 inch one-wheel motor

Qihang QH-YM500W(14) 14 inch one-wheel motor

Qihang QH-YM500W(14) 14 inch one-wheel motor is an advanced personal transportation device designed to provide a comfortable and flexible travel experience. Its design combines advanced technology and reliable engineering to provide users with stable, efficient power output and excellent control performance. This product adopts 14-inch wheel diameter, which ensures good balance and stability, making it suitable for various road conditions and terrains. Users can choose the rated voltage of 36V or 48V according to their needs to meet different travel needs and preferences. The rear-drive design allows the motor to provide strong power output while effectively reducing energy consumption. The no-load current of 0.9 amps is energy-saving and environmentally friendly, while the maximum rated current of 13 amps ensures stable and reliable performance, allowing users to travel with peace of mind. The cable is located on the right side of the axis, which facilitates installation and connection and improves overall ease of use. The design without spokes reduces weight, enhances control flexibility, and makes operation easier and smoother.
The single-wheel motor has a rated torque of 50.0 Newtons, ensuring quick start and smooth acceleration. Optional Hall sensors provide more precise speed and position control, enhancing the overall driving experience.
Tel: +86-574-63213097            Phone: +86-18967859330
E-mail: [email protected]
Leaving a message
  • Qihang QH-YM500W(14) 14 inch one-wheel motor
  • Qihang QH-YM500W(14) 14 inch one-wheel motor
  • Qihang QH-YM500W(14) 14 inch one-wheel motor
  • Qihang QH-YM500W(14) 14 inch one-wheel motor
  • Qihang QH-YM500W(14) 14 inch one-wheel motor

Product Details

Product Type：

QH-YM500W(14)

Open Size Front (mm)：

100

Wheel Size (IN)：

14

Open Size Rear （mm）：

135

Rated Voltage (V)：

36/48

Drive：

Rear

No-load current (A)

0.9

Cable Location：

Shaft center right

Rated current (A)

13

Spoke Specification：

no

Rated torque (N)：

50.0

Hall Sensor：

Optional

Rated Power (W)：

500

Speed Display：

Optional

Rated Speed (km/h)：

25-45

Surface：

Black painted/white painted

Rated Efficiency (%)：

≧82

Brake Type for Front：

V/saucer Brake

Reduction Ratio：

1：5

Brake Type for Rear：

V/saucer Brake

Weight(Front wheel) (Kg)：

1.4

Noise (db)：

< 50

Weight(Rear motor) (kg)：

4.0

Waterproof Grade：

IP54



  • Q Produce

    Cixi Qihang Motor Technology Co.,Ltd. is professional China Qihang QH-YM500W(14) 14 inch one-wheel motor suppliers and custom Qihang QH-YM500W(14) 14 inch one-wheel motor company, we have been recognized by the industry for its integrity, strength, and product quality.
    As soon as we receive sample orders from customers, we will arrange mould development immediately.
    Finish real samples send to customers for confirmation.
    Mass production will be arranged after getting the customers' confirmation and orders.

  • H RESULTS

    For each production process, the staff self inspection and the inspector's sampling inspection shall be added. The final product shall be put into storage after 100% full inspection for customer inspection.
    We will ship the goods after customers' confirmation.

Cixi Qihang Motor Technology Co.,Ltd.

We have been recognized by the industry for its integrity, strength, and product quality. We are engaged in Motor Research and development, electrical machinery, electronic components, household appliances, and mechanical equipment. Qihang as one the professional China custom Qihang QH-YM500W(14) 14 inch one-wheel motor suppliers and OEM/ODM company, We pursue excellence, but we are more pragmatic and put customer satisfaction. The company has strong strength, pays attention to credit, abides by contracts, and ensures product quality, The company has won the trust of customers with the principle of diversified business characteristics and the principle of small profits and quick turnover, and enjoys a high reputation among users.
We have established long-term cooperative relationships with many domestic enterprises and has a complete and scientific quality management system.

  • One-stop Solution



    Our main business is to provide one-stop customized service for Qihang QH-YM500W(14) 14 inch one-wheel motor, which offers our customers a comprehensive solution based on their specific needs.

  • Customized Machinery



    R&D center to provide you with professional electric motor technology consulting, professional Qihang QH-YM500W(14) 14 inch one-wheel motor design, customized special electric motor, to meet different customer needs.

  • OEM / ODM production



    Over the years, we have provided high-quality OEM Qihang QH-YM500W(14) 14 inch one-wheel motor services to global peers, and take the OEM / ODM cooperation mode as a core strategy of our company's long-term development.
